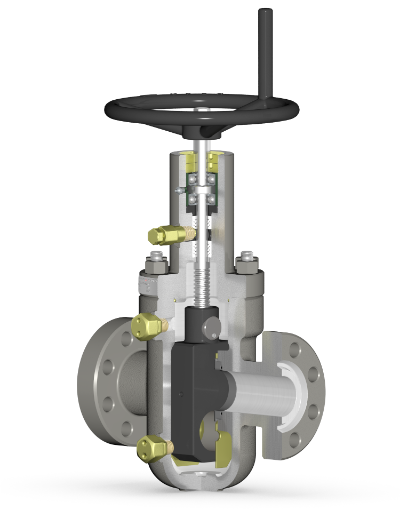

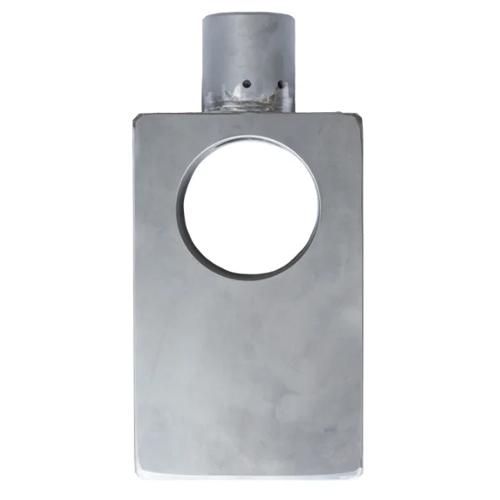

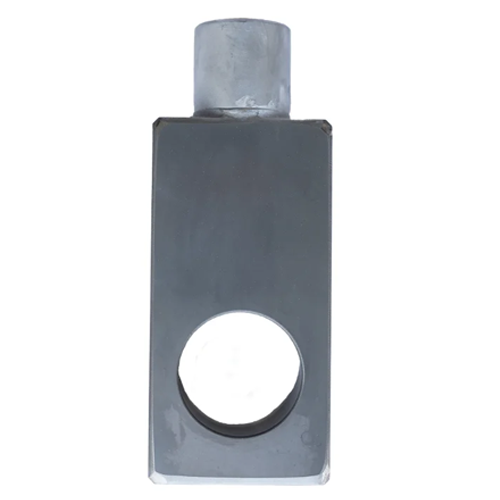

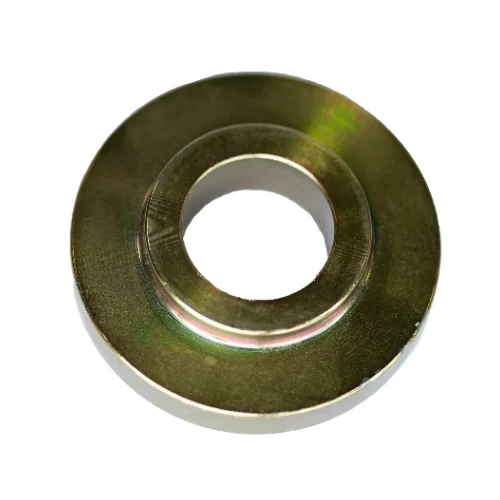

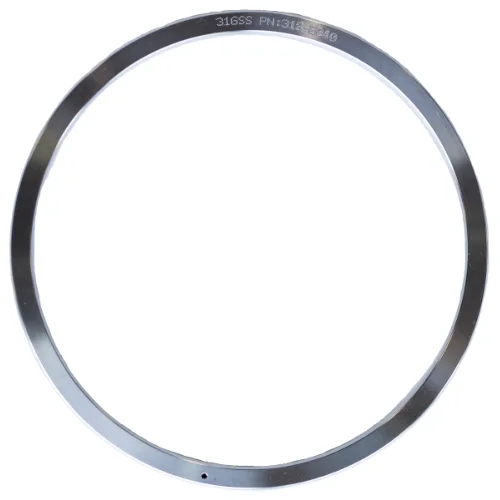

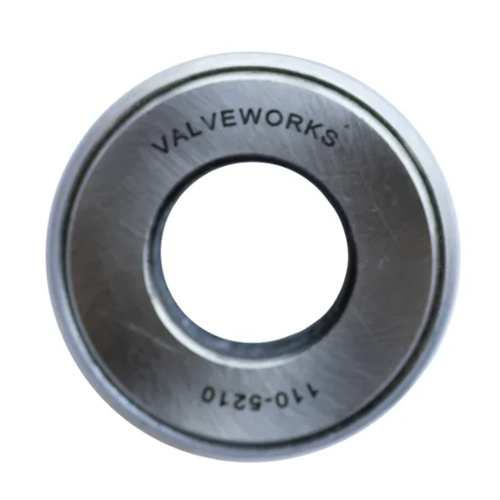

Gate Valves

In addition to Valveworks USA’s extensive inventory of in-stock gate valves, our team of highly specialized and qualified engineers work diligently to ensure that your custom needs and orders are seen through to completion. With state-of-the-art software and equipment, our engineers are capable of designing and building the most complex valves needed to fit your specific requirements, designs, and applications.

M Series

VM Series

XT Series

FM4 Series

FM Series

XPR Series

Model FC

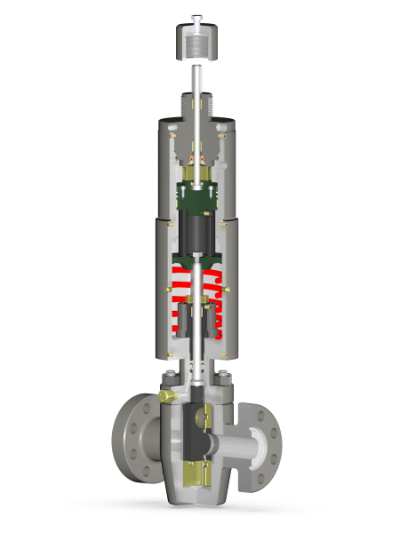

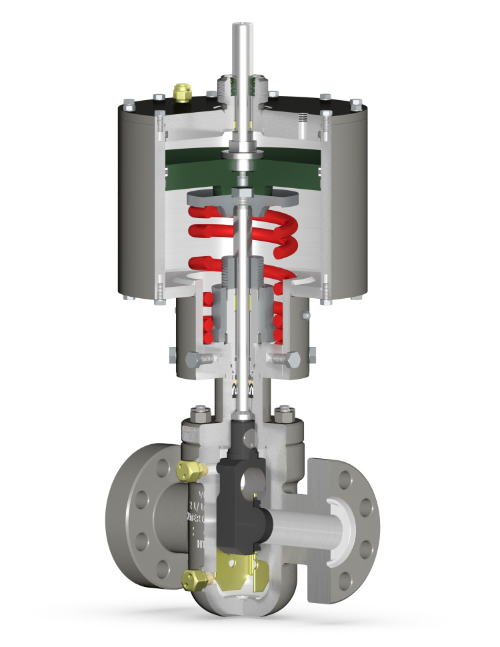

Actuators

Valveworks USA offers hydraulic and pneumatic actuators for valves from sizes 1 13/16″ to 7 1/16″ and up to 15,000 psi.

Single Acting Hydraulic

Double Acting Hydraulic

Pneumatic Diaphragm

Piston Pneumatic

Wellhead AND TREE Equipment

Valveworks USA tree products are engineered and designed in compliance with API 6A to ensure safety and reliability. Our experience, and extensive inventory means you can depend on Valveworks USA to deliver the wellhead solutions you need, when you need them.

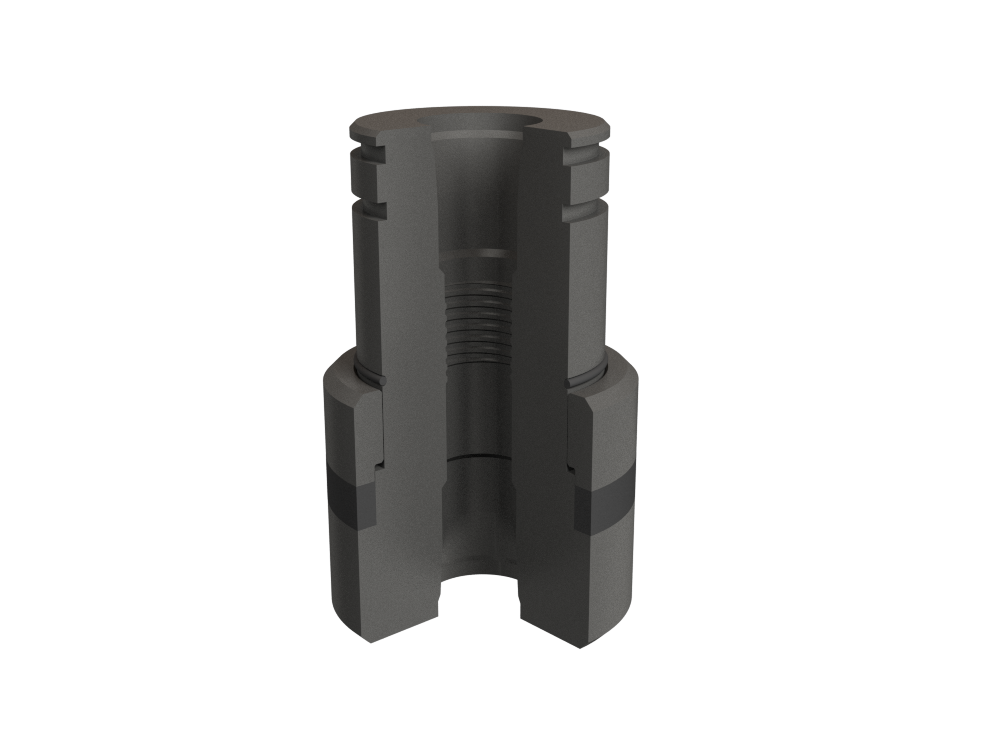

Top Connectors /

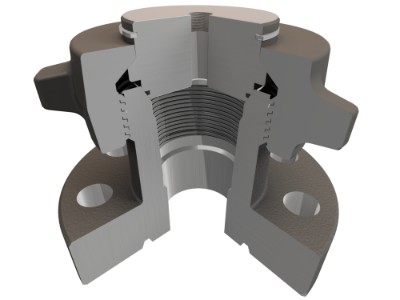

Tree Caps

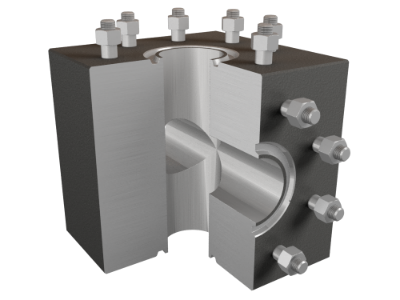

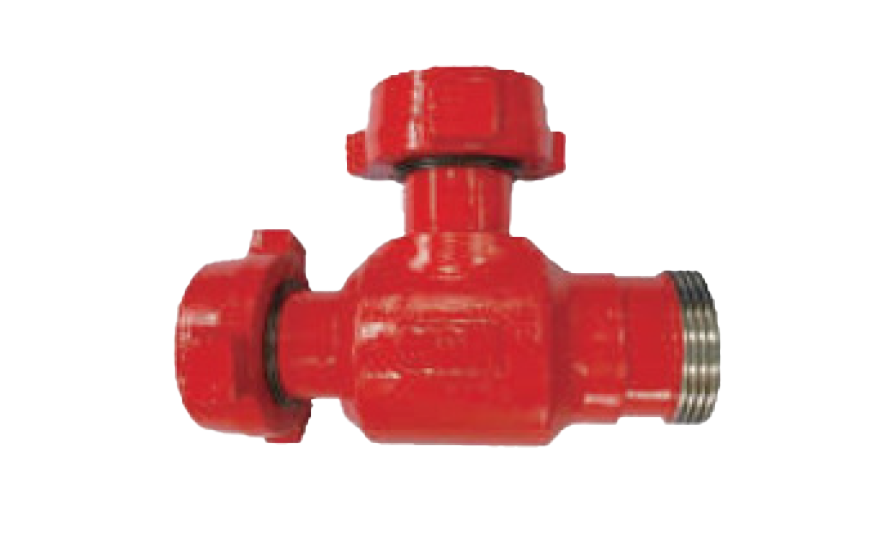

Tee and Crosses

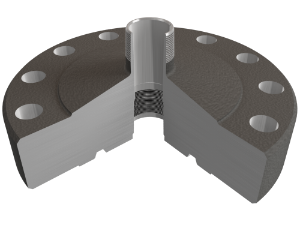

Tubing Head Adapters

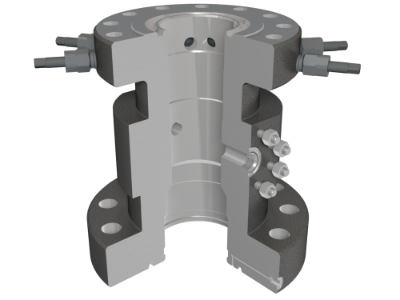

Tubing Heads

Tubing Hangers

Casing Spools

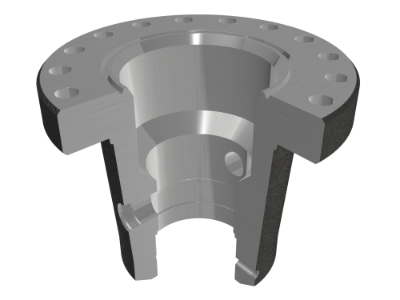

Casing Heads

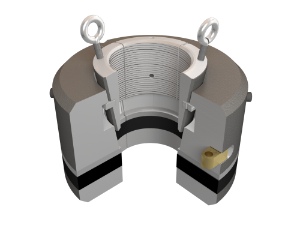

Casing Hangers

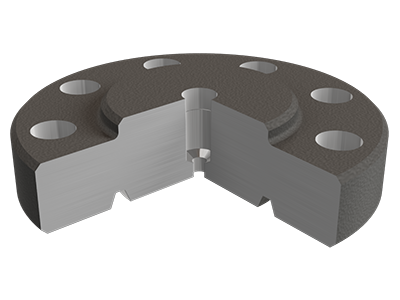

Blind, and Test Flanges

Threaded Connectors

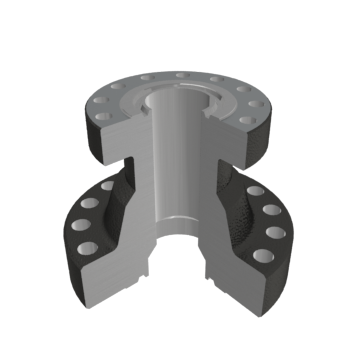

Spools (Adapter and Spacer)

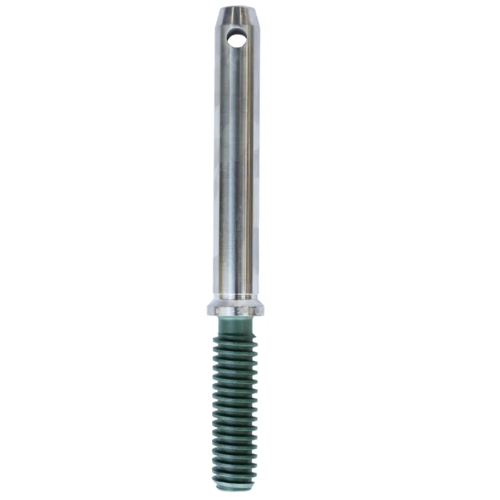

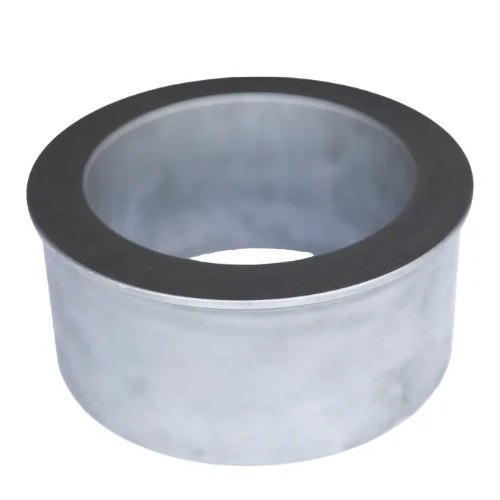

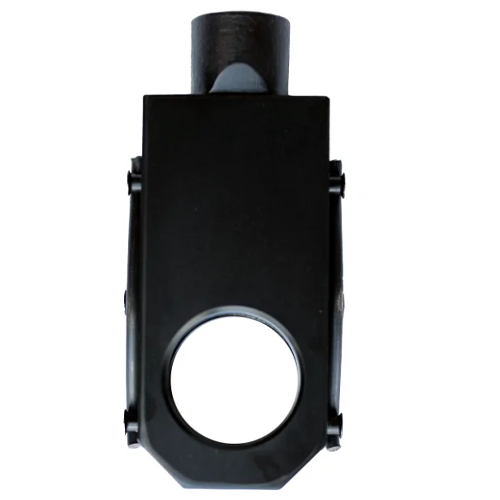

Gate Valves Trim Chart



SERVICE CONDITIONS Trim Body Bonnet Gate Seat Stem BSR
General / Non Corrosive AA A487 4D/4130 4130 4130 4130 4130 1018
General / Slightly Corrosive BB A487 4D/4130 4130 410SS 410SS 17-4SS 316SS
General, Moderately Corrosive, CO2 CC CA6NM / 410SS 410SS 410SS 410SS 17-4SS 316SS
Sour, Non-Corrosive DD A487 4D/4130 4130 4130 4130 4130 1018 ZINC
Sour, Non-Corrosive DD-0,5 A487 4D/4130 4130 4130 4130 17-4SS 1018 ZINC
Sour, Slightly Corrosive EE-0,5 A487 4D/4130 4130 410SS 410SS 17-4SS 316SS
Sour Highly Corrosive, MOD Abrasive, CO2 EE-1,5 A487 4D/4130 4130 410SS 410SS 410SS 316SS
Sour Highly Corrosive, CO2, High Abrasive EE A487 4D/4130 4130 410SS 410SS NITRONIC 50*1 316SS
Sour, Moderately Corrosive, H2S FF-0,5 CA6NM / 410SS 410SS 410SS 410SS 17-4SS 316SS
Sour, Highly Corrosive, CO2 and H2S FF-1,5 CA6NM / 410SS 410SS 410SS 410SS 410SS 316SS
Sour, Highly Corrosive, CO2 and H2S FF CA6NM / 410SS 410SS 410SS 410SS NITRONIC 50*1 316SS
High Corrosion Extreme Service HH-*3 4130 w/625 Inlay 4130 w/625 Inlay INCONEL® 718 *2 INCONEL® 718 *2 INCONEL® 718 *2 316SS

NOTES:

  1. INCONEL® 718 IS AVAILABLE AS AN UPGRADE.
  2. INCONEL® 718 IS ONLY “NL” FOR TEMPERATURES K THRU U. INCONEL® 725 CAN BE USED UP TO TEMP X.
  3. CRA MATERIAL IS NOT AVAILABLE FOR TEMP Y SERVICE.
  4. STANDARD TRIM PARTS ARE QPQ NITRIDED.
  5. TUNGSTEN CARBIDE, HVOF, HARDFACED GATES AND SEATS ARE AVAILABLE FOR ANY TRIM UPON REQUEST.
TRIM CODE API SPEC.6A RETAINED FLUID RATING MATERIAL CLASS EXPLANATION
T-21 AA STANDARD TRIM
For essentially noncorrosive liquids or gases. Typical examples are crude
and refined oils, natural or refined gases and processed hydrocarbons.
Typical uses are wellheads, manifolds, flowlines and other similar
installations requiring a through conduit valve. The temperature limitations
are 0 degrees to 250 degrees F.
T-22 BB STAINLESS TRIM
For substantially the same service as T-21 but where the corrosion
resistance of 13 Chrome Stainless Steel internal parts are desirable. Also
usable for mildly corrosive fluids and gases when limited corrosion of the
internal body surfaces can be tolerated. The temperature limitations are
0 degrees to 250 degrees F. Recommended when partial pressure of CO2
is greater than 30.
T-23 CC FULL STAINLESS TRIM
For any liquid or gaseous product for which the resistance of the 13
Chrome Stainless is adequate. Also used where the resistance of Stainless
Steel is desirable from the standpoint of product purity. The temperature
limitations are 0 degrees to 250 degrees F. Recommended when partial
pressure of CO2 is greater than 30.
T-24 EE SOUR GAS AND OIL
Primarily for sour gas and oil where resistance to Hydrogen Sulfide
embrittlement is required. Also suitable for other chemicals, products or
hydrocarbons when H2S is present. May be used when CO2 is present in
smaller amount than H2S. The temperature limitations are 0 degrees to
250 degrees F.
T-26 FF STAINLESS SOUR GAS AND OIL TRIM
Primarily for sour gas and oil when the CO2 content exceeds the H2S
content. It is intended to provide resistance to the metal loss type of
corrosion usually associated with CO2 plus resistance to Hydrogen Sulfide
embrittlement. The temperature limitations are 0 degrees to 250 degrees F.
T-27 WATERFLOOD (UNINHIBITED)
Primarily for use in untreated or uninhibited brackish saline water typically
associated with oilfield waterflood projects and/or disposal wells in which
the internal plastic coating of the body surfaces provides resistance to salt
water corrosion. The internal parts are also resistant to Sulfide
embrittlement and corrosion. The temperature limitations are 0 degrees
to 250 degrees F.
T-36 AA LOW TEMPERATURE – STANDARD TRIM – GENERAL OILFIELD
For essentially noncorrosive liquids or gases. Typical examples are crude
and refined oils, natural or refined gases and processed hydrocarbons.
Typical uses are wellheads, manifolds, flowlines and other similar
installations requiring a through conduit valve. The temperature limitations
are -50 degrees to 180 degrees F.
T-37 EE LOW TEMPERATURE -SOUR GAS AND OIL
Primarily for sour gas and oil where resistance to Hydrogen Sulfide
embrittlement is required. Also suitable for other chemicals, products or
hydrocarbons when H2S is present. May be used when CO2 is present in
smaller amount than H2S. The temperature limitations are -50 degrees to
180 degrees F.
